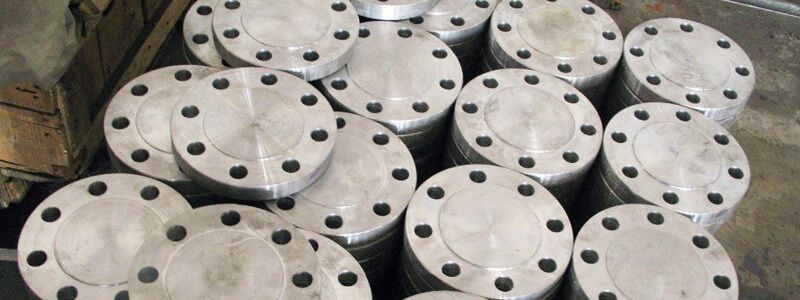

ANSI B16.5 Blind Flanges SS Blind Flange

ANSI B16.5 Blind Flanges, SS Blind Flanges, Duplex Steel Blind Flanges, Blind Raised Face Flanges, Stainless Steel Blind Flanges, Raised Face Blind Flanges Stockist, Carbon Steel Blind Flange, Nickel Alloys Blind Flanges, ANSI/ASME B16.5 Blind Flanges Manufacturer in India.

Neelkamal Alloys LLP is a known supplying unit of Blind Flanges, which cannot be hardened by heat treatment and can however be work hardened. Owing to our rich industrial experience, we are offering optimum quality of these Stainless Steel Blind Flanges to our customers at competitive prices. Carbon Steel Blind Flanges are often used in Power Generation, Aerospace Industry, Nuclear Industry, Chemical Industry, and more. Alloy Steel Blind Flanges are smoothly processed by utilizing the best grade copper and updated technology accordingly with ongoing trends of market. Low thermal conductivity of Super Duplex Steel Blind Flanges results in heat concentrating at the cutting edges. Nickel Alloy Blind Flanges are often used in Oil and Gas Industry, such as for Pumps, Valves, Pipe, Vessels, Wellhead Equipment, Subsea Equipment, Separators, Heat Exchangers, etc. Meanwhile, Inconel Alloy Blind Flanges is designed for applications which demand exceptional strength and corrosion resistance.

ANSI B16.5 BLRF Flange Dealer, Inconel Blind Flanges, Alloy Steel BLRF Flanges, Raised Face Blind Flange Exporter, Hastelloy Blind Flange, Class 300 Blind Flanges, Class 150/300/900/1500/2500 Blind Flanges, Class 1500 Blind Flanges, Monel Blind Flanges Supplier in Mumbai, India.

Quick Section Links

What is Blind Flanges?
ASME B16.5 Blind Flanges Specifications
Blind Flanges Material & Grades
ANSI B16.5 Blind Flange Price List
Other Types of Blind Flange in Stock

The high strength of Monel Alloy Blind Flanges can pose problems, which means coolants and lubricants are necessary and must be used in large quantities. Even when the equipment has sufficient power in Hastelloy Alloy Blind Flanges, allowance must be made for higher spring-back caused by the grade’s high strength. Copper Nickel Blind Flanges are often used in Marine Industry and Shipbuilding, such as for Propellers and Shafts, Rudders, Shaft Seals, Pumps, Bolts and Fasteners, Valves, Instrumentation, Oil and Chemical Tankers.

ASME B16.5 Blind Flange Specifications

Size	1/2" (15 NB) to 48" (1200NB)
Dimensions	ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Class	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Standard	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. Blind Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Blind Flange The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Call +91- 22- 66362225 / +91- 22- 66662225 OR

Email us at sales@neelkamalsteels.com for quick response

GET A QUOTE GET A QUOTE

Blind Flanges Material & Grades

Stainless Steel Blind Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Blind Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Blind Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Blind Flanges : ASTM A350, LF2, LF3

Alloy Steel Blind Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Blind Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Blind Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

ANSI B16.5 Blind Flange Price List

Contact us or click on request a quote button to get our competitive prices for Stainless Steel Blind Flange. Neelkamal Alloys LLP maintain the large inventory of high quality ASME B16.5 Blind Flanges for sale to our clients throughout globally.
